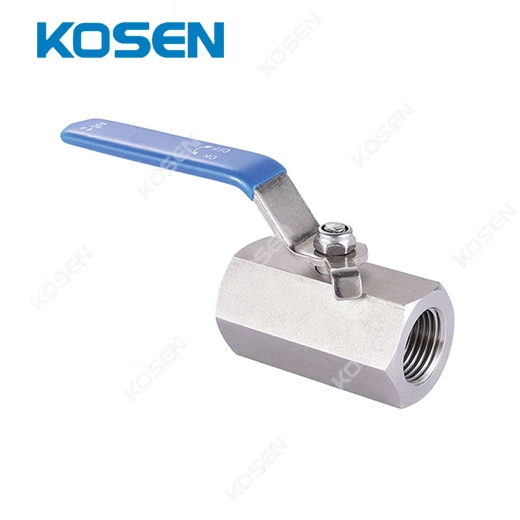

1 PIECE HEXAGON SS BALL VALVE 2000PSI

Product Description 2000PSI threaded high-pressure ball valve is mainly used for flow and stop in hydraulic, fluid and oil-gas pipelines. 2000PSI threaded high-pressure ball valve is mainly character
Port size
1/4”~2” 2000 W.O.G
Pressure
2000PSI
Structure
1 Piece Body, Hexagon Type
Medium
Water,steam,oil,gas
Temperature
-20~150ºC
Body material
STAINLESS STEEL
Connection
Threads Conform to ASME B1.20.1(NPT)
Feature
Customized for client's requirement

Product Description

2000PSI threaded high-pressure ball valve is mainly used for flow and stop in hydraulic, fluid and oil-gas pipelines. 2000PSI threaded high-pressure ball valve is mainly characterized by its compact structure, reliable sealing, simple structure, convenient maintenance, not easy to be eroded by media, easy operation and maintenance. This type of ball valve has the characteristics of small flow resistance loss, reliable sealing performance, convenient operation, beautiful appearance, etc.

Structural Features

1 Piece Body, Hexagon Type

Threaded Ends to ANSI B1.20.1(NPT)

Acc to ANSI B16.34, NACE MR-01-75

2000WOG, Reduced Bore

Test API 598

Materials of main parts

No

Part

Matarial

1

BODY

ASTM A182 F316

2

CAP

SS316

3

SEAT

RPTFE

4

BALL

SS316

5

STEM

SS316

6

PACKING

PTFE

7

THRUST WASHER

PTFE

8

GLAND

SS304

9

NUT

SS304

10

HANDLE

SS201

11

HANDLE COVER

PVC

12

GASKET

PTFE

13

SPRING WASHER

SS304

Dimensions(in)

Size

Port

Pressure

d

D

L

H

W

Weight

(Lbs)

Torque

(in.Lb)

1/4”

RP

2000PSI

0.20

0.83

1.70

1.25

2.63

0.29

42

3/8”

RP

2000PSI

0.28

0.98

1.86

1.33

2.63

0.44

42

1/2”

RP

2000PSI

0.36

1.18

2.46

2.19

4.65

0.71

49

3/4”

RP

2000PSI

0.49

1.42

2.75

2.42

4.65

1.19

73

1”

RP

2000PSI

0.63

1.81

3.38

2.57

4.72

2.09

113

1-1/4”

RP

2000PSI

0.79

2.17

3.69

2.90

5.75

3.09

253

1-1/2”

RP

2000PSI

0.96

2.40

4.00

3.10

5.75

3.75

288

2”

RP

2000PSI

1.26

2.95

4.50

3.54

6.00

6.13

391
