High Pressure Ball Valve

3PC HIGH PRESSURE BALL VALVE

Port size: 1/2”~2” 3000 W.O.G

Pressure: 800Lb, 1500Lb

Structure: 3 PIECE BODY

Medium: Water,steam,oil,gas

Temperature: -20~150ºC

Body material: CARBON STEEL

Connection: Threads Conform to ASME B1.20.1(NPT)

Feature: China Forged Steel Ball Valve manufacturing

3PC HIGH PRESSURE FORGED STEEL BALL VALVE

Port size: 1/2”~2” 3000 W.O.G

Pressure: 800Lb, 1500Lb

Structure: 3 PIECE BODY

Medium: Water,steam,oil,gas

Temperature: -20~150ºC

Body material: CARBON STEEL,STAINLESS STEEL

Connection: Threads Conform to ASME B1.20.1(NPT)

Feature: China Forged Steel Ball Valve manufacturing

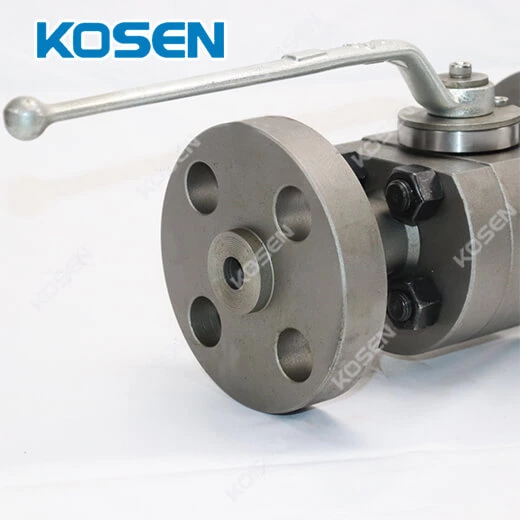

FLANGE END HIGH PRESSURE BALL VALVE

Port size: 1/2”~12” (DN15-DN300)

Pressure: PN16-PN420 CL150-CL2500

Structure: 2PC or 3pc, FP or RP

Medium: Water,steam,oil,gas

Temperature: -20~150ºC, -40~450ºC,

Body material: A105N, LF2, F304, F316 or others

Connection: NPT, SW, BW, RF, RTJ

Feature: For High Pressure Medium

BUTT WELD HIGH PRESSURE BALL VALVE

Port size: 1/2”~12” (DN15-DN300)

Pressure: PN16-PN420 CL150-CL2500

Structure: 2PC or 3pc, FP or RP

Medium: Water,steam,oil,gas

Temperature: -20~150ºC, -40~450ºC

Body material: A105N, LF2, F304, F316 or others

Connection: Butt weld or others

Feature: Different material is optional

METAL SEATED HIGH PRESSURE BALL VALVE

Port size: 1/2”~2” (DN15-DN50)

Pressure: CL900-CL2500

Structure: 3pc,Metal seated design

Medium: Water,steam,oil,gas

Temperature: -40~450ºC

Body material: A105N, LF2, F304, F316 or others

Connection: Flange,Thread,SW,BW is optional

Feature: Metal seated for high temperature medium

3PC THREADED HIGH PRESSURE BALL VALVE

Port size: 1/2”~2” 2000 W.O.G

Pressure: 2000PSI

Structure: 3 PIECE BODY

Medium: Water,steam,oil,gas

Temperature: -20~150ºC

Body material: STAINLESS STEEL

Connection: Thread or BW,SW is optional

Feature: Manual,pneumatic,electric actuator is optional

3 WAY HIGH PRESSURE BALL VALVE

Port size: 1/2”~2” (DN15~DN50)

Pressure: 600Lb~2500Lb, PN100~PN420

Structure: 3 Way (T Type or L Type)

Medium: Water,steam,oil,gas

Temperature: -20~150ºC, -20~450ºC

Body material: A105 or F304 F316 F316L etc.

Connection: Threads Conform to ASME B1.20.1(NPT)

Feature: Need confirm the flow direction

3 PIECE FULL PORT HIGH PRESSURE BALL VALVE

Port size: 1/2"~4" (DN15~DN100)

Pressure: CL900-CL2500

Structure: Floating,Full Bore,3PC

Medium: Water,steam,oil,gas

Temperature: -20~150ºC, -40~450ºC,

Body material: A105N, LF2, F304, F316 or others

Connection: Flange or others

Feature: For High Pressure Medium

Product description of High Pressure Ball Valve

The high-pressure ball valve is mainly used to cut off or connect the medium in the pipeline, and it can also be used for fluid regulation and control. Among them, the hard sealed V-shaped ball valve has a strong shear force between its V-shaped ball core and the metal valve seat of hardfacing cemented carbide, which is especially suitable for media containing fiber, micro solid particles and so on. The multi-way ball valve can not only flexibly control the confluence, diversion and flow direction switching of media on the pipeline, but also close any channel to connect the other two channels. This type of valve should generally be installed horizontally in the pipeline.

Features of High Pressure Ball Valve

1. The fluid resistance is small, and the full bore ball valve basically has no flow resistance.

2. Simple structure, small volume and light weight.

3. Tight and reliable. It has two sealing surfaces, and the sealing surface materials of the ball valve are widely used in various plastics, which has good sealing performance and can realize complete sealing. It has also been widely used in vacuum systems.

4. It is easy to operate and open and close quickly. It only needs to rotate 90 ° from full open to full close, which is convenient for remote control.

5. The maintenance is convenient, the structure of the ball valve is simple, the sealing ring is generally movable, and the disassembly and replacement are relatively convenient.

6. When fully open or closed, the sealing surface of the ball and valve seat is isolated from the medium. When the medium passes through, it will not cause the erosion of the valve sealing surface.

7. It has a wide range of applications, ranging from small diameter to a few millimeters, and from high vacuum to high pressure.

8. Because the ball valve is wiping during opening and closing, it can be used in media with suspended solid particles

Industrial applications of High Pressure Ball Valve

High pressure ball valves are widely used in chemical industry, petrochemical industry, natural gas and other fields. They can be used to control the fluid transmission of air, water, CNG, oil and other materials suitable for valves. They are a powerful assistant for pipeline high-pressure transportation.
