4 WAY STAINLESS STEEL BALL VALVE

Product Description Four way stainless steel ball valve is a four-way four seat ball valve with "X" type flow channel. Rotating 90 ° can switch the flow direction of the two media at the same time. T
Port size
1/2"~16" (DN15~DN400)
Pressure
CL150-CL2500
Structure
4 way:T Port or L port,X port
Medium
Water,steam,oil,gas
Temperature
-29~150℃,-40~450℃
Body material
A105 LF2 F304 F316 F316L or others
Connection
Flange or others
Feature
4 way ball valve manufacturer

Product Description

Four way stainless steel ball valve is a four-way four seat ball valve with "X" type flow channel. Rotating 90 ° can switch the flow direction of the two media at the same time. The worm gear four-way ball valve is convenient and fast, realizing the effect of one valve for multiple purposes., The four-way ball valve is applicable to the circulating system of liquid, gas, dust, slurry and medium containing solid particles, such as the forward and reverse circulating water supply system of power plant unit cooler.

Standards Compliance

» Design and manufacture: GB/T12237-1989, API608

» Inspection and test: gb/t13927-1992, API598

» Flange connection: JB/T79.1,ASME/ANSI16.5

» Port: Full Port

» Connection Ends: Flange

» Working Temp: -29~180ºC, or according to customer requirements for different industry.

» Suitable Medium: Water, Sea water,Natural Gas, Oil and some corrosive liquid

» Operation: Handle operated, Locking device is option

» Inspection & Testing: According to API598

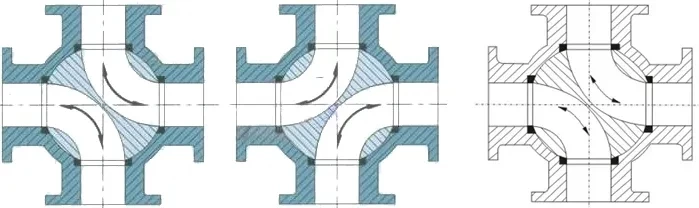

Structure diagram



4 WAY STAINLESS STEEL BALL VALVE
