FLANGE ISO 5211 DIRECT MOUNT PAD BALL VALVE
- Port size
- 1/2"~5" (DN15~DN125)
- Pressure
- PN16~PN40, 150LB, 300LB
- Structure
- Floating ball,2PC
- Medium
- Water,steam,oil,gas
- Temperature
- -29～150℃
- Body material
- WCB,CF8,CF8M,CF3,CF3M etc.
- Connection
- Flange
- Feature
- ISO 5211 Mounting Pad for Different Operation
Product description
The high platform ball valve is a kind of flange ball valve, which has some advantages of its own structure. The ball valve has no friction on and off, the seal is not easy to wear, and the opening and closing torque is small. This reduces the size of the actuator. Equipped with multi turn electric actuator, the medium can be cut off tightly. High platform flange ball valve is widely used in petroleum, chemical industry, urban water supply and drainage and other conditions requiring strict cut-off.
Standards Compliance
» Blow-out Proof stem/Full port
» Design and Manufacture: ASME B16.34, GB/T 12237
» Face to face(end to end): GB/T 12221
» Flanged connection: ANSI B16.5, GB/T 9113
» Wall Thickness: ASME B16.34
» Test and inspection: GB/T 13927, API 598
» Fire protection design test: API 607;
Materials of main parts
|
No |
PART NAME |
PN16/40 |
CLASS150/300 |
||
|
1 |
BODY |
1.4408 |
1.0619 |
CF8M |
WCB |
|
2 |
BALL |
CF8M |
CF8 |
SS316 |
CF8 |
|
3 |
STEM |
SS316 |
SS304 |
SS316 |
CF8 |
|
4 |
END CAP |
1.4408 |
1.6019 |
CF8M |
WCB |
|
5 |
BODY SEAL |
PTFE |
PTFE |
PTFE |
PTFE |
|
6 |
SEAT |
RTFE |
RTFE |
RTFE |
RTFE |
|
7 |
WASHER |
PTFE |
PTFE |
PTFE |
PTFE |
|
8 |
STEM PACKING |
PTFE |
PTFE |
PTFE |
PTFE |
|
9 |
WASHER |
RTFE+25%G.F |
RTFE+25%G.F |
RTFE+25%G.F |
RTFE+25%G.F |
|
10 |
GLAND |
SS304 |
SS304 |
SS304 |
SS304 |
|
11 |
HANDLE |
SS304 |
SS304 |
SS304 |
SS304 |
|
12 |
HANDLE COVER |
PLASTIC |
PLASTIC |
PLASTIC |
PLASTIC |
|
13 |
STEM NUT |
SS304 |
SS304 |
SS304 |
SS304 |
|
14 |
HANDLE WASHER |
SS304 |
SS304 |
SS304 |
SS304 |
|
15 |
HANDLE NUT |
SS304 |
SS304 |
SS304 |
SS304 |
|
16 |
LOCKING PAD |
SS304 |
SS304 |
SS304 |
SS304 |
|
17 |
BELLEVILLE WASHER |
SS304 |
SS304 |
SS304 |
SS304 |
|
18 |
STOP WASHER |
SS304 |
SS304 |
SS304 |
SS304 |
|
19 |
O RING |
VITON |
VITON |
VITON |
VITON |
|
20 |
STOP |
SS304 |
SS304 |
SS304 |
SS304 |
|
21 |
STUD |
193 Gr.B8 |
193 Gr.B8 |
193 Gr.B8 |
193 Gr.B8 |
|
22 |
NUT |
193 Gr.8 |
193 Gr.8 |
193 Gr.8 |
193 Gr.8 |

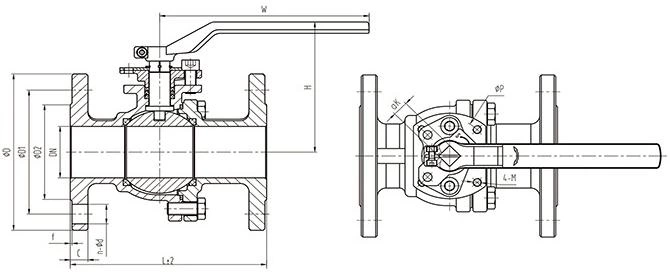

Dimension drawing
Dimensions(mm)
|
Size |
L |
R |
C |
D |
H |
H1 |
E |
F |
T |
□P |
N |
ØX |
ISO 5211 |
|
1/2" |
130 |
45 |
65 |
95 |
49 |
76 |
110 |
2 |
14 |
9 |
4 |
14 |
F03-F04 |
|
3/4" |
130 |
58 |
75 |
105 |
54 |
81 |
110 |
2 |
14 |
9 |
4 |
14 |
F03-F04 |
|
1" |
140 |
68 |
85 |
115 |
60 |
90 |
130 |
2 |
14 |
11 |
4 |
14 |
F04-F05 |
|
1-1/4" |
165 |
78 |
100 |
140 |
71 |
102 |
160 |
2 |
16 |
11 |
4 |
18 |
F04-F05 |
|
1-1/2" |
165 |
88 |
110 |
150 |
78 |
115 |
185 |
3 |
16 |
14 |
4 |
18 |
F05-F07 |
|
2" |
203 |
102 |
125 |
165 |
85 |
122 |
185 |
3 |
16 |
14 |
4 |
18 |
F05-F07 |
|
2-1/2" |
222 |
122 |
145 |
185 |
100 |
168 |
305 |
3 |
18 |
17 |
4 |
18 |
F07-F10 |
|
3" |
241 |
138 |
160 |
200 |
110 |
178 |
305 |
3 |
20 |
17 |
8 |
18 |
F07-F10 |
|
4" |
305 |
158 |
180 |
220 |
130 |
198 |
305 |
3 |
20 |
22 |
8 |
18 |
F07-F10 |
|
5" |
356 |
188 |
210 |
250 |
165 |
234 |
500 |
3 |
22 |
27 |
8 |
18 |
F12-F14 |
