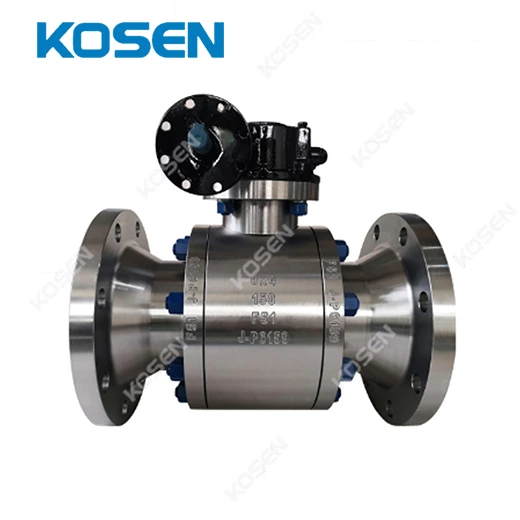

FULL BORE FORGED STEEL BALL VALVE

Product Description The floating forged steel ball valve adopts the structural design of single inclined plane elastic seal ring or V-groove elastic seal ring, or the movable metal valve seat structu
Port size
1/2”~12”
Pressure
150LB-2500LB
Structure
2PC or 3PC,Floating ball
Medium
Water,steam,oil,gas
Temperature
-20~150ºC, -40~450ºC
Body material
A105N, LF2, F304, F316 or others
Connection
RF, BW, RTJ
Feature
Customized for client's requirement

Product Description

The floating forged steel ball valve adopts the structural design of single inclined plane elastic seal ring or V-groove elastic seal ring, or the movable metal valve seat structure with leaf spring preload. When the medium pressure is too small, the contact area between the ball valve sealing ring and the ball is small, so there is a large sealing specific pressure to ensure reliable sealing. When the medium pressure is large, the contact area between the sealing ring and the ball becomes larger, so the sealing ring can be pushed by the medium without damage. The floating forged steel ball valve has a long service life because the sealing ring materials such as polytetrafluoroethylene have good self lubrication and small friction loss with the ball. According to the needs of users, it can be designed to be suitable for structures containing solid particles, slurry and other media, and to be resistant to higher temperatures.

Standards Compliance

» Design and manufacture: API 6D, BS5351,,ASME B16.34, GB/T12237

» Scoket Welded Ends: ASME B16.10, GB/T12221

» Screw Ends: ANSI B1.20.1; JB/T7306

» Butt-welded Ends: ANSI B16.25; JB/T12224

» Flanged Ends: ASME B16.5, GB/T9113

» Test and inspection: API 598, GB/T13927, JB/T9092

Materials of main parts

NO

Part name

Materail

1

BODY

A105N, F304, F316, F316L

2

BALL

SS304, SS316, SS316L

3

STEM

SS304, SS316, SS316L

4

SEAL RING

PTFE,RTFE

5

GASKET

O-RING,PTFE,GRAPHITE

6

PACKING

PTFE,GRAPHITE

7

THRUST WASHER

PTFE

8

SPACER

A283D,STANINLESS STEEL

9

HANGLE

A283D,STANINLESS STEEL

10

NUT

A276-T304

11

PIN

A276-T304

12

NUT

A194-2H, A194-8

13

BOLT

A194-B7, A194-B8

Dimensions(mm) Class 150Lb

Size

1/2

3/4

1

1-1/2

2

2-1/2

3

4

5

6

8

10

15

20

25

40

50

65

80

100

125

150

200

250

L

108

117

127

165

178

190

203

229

356

394

457

533

H

84

88

95

120

140

160

180

208

220

335

335

 /

W

130

130

140

250

250

400

400

450

450

1050

1500

/

Dimensions(mm) Class 300Lb

Size

1/2

3/4

1

1-1/2

2

2-1/2

3

4

5

6

8

15

20

25

40

50

65

80

100

125

150

200

L

140

152

165

191

216

241

283

305

381

403

502

H

84

88

95

120

140

160

180

208

220

335

/

W

130

130

140

250

250

400

400

450

450

1050

/
