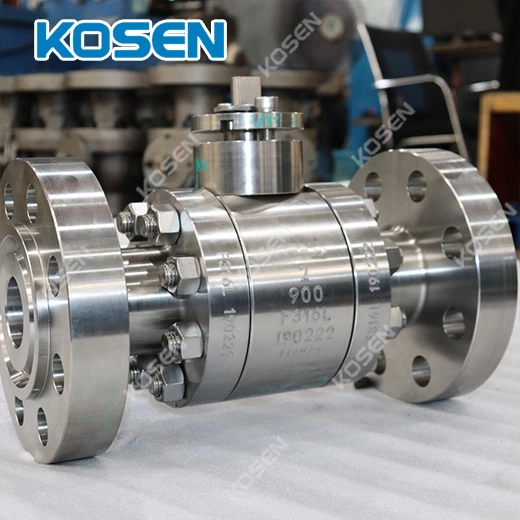

METAL SEATED HIGH PRESSURE BALL VALVE
- Port size
- 1/2”~2” (DN15-DN50)
- Pressure
- CL900-CL2500
- Structure
- 3pc,Metal seated design
- Medium
- Water,steam,oil,gas
- Temperature
- -40~450ºC
- Body material
- A105N, LF2, F304, F316 or others
- Connection
- Flange,Thread,SW,BW is optional
- Feature
- Metal seated for high temperature medium
Product Description
High pressure hard sealed ball valve can be selected when the temperature is higher than 250 ℃. The materials of valves can be selected according to the needs of users. In general, the following points should be paid attention to in the material selection of hard sealed high-pressure ball valves: 1. In high temperature environment, stainless steel non sluggish ball valves should be selected. Such high temperature is generally 100 ° C to 200 ° C. The sealing material is usually ppl, the valve body material can be WCB, the valve rod material should be stainless steel iron, and the ball material can be 201. 2. For ball valves with operating temperature between 250 ℃ and 400 ℃, it is best to choose materials with good sealing effect, and usually choose hard sealed high-pressure ball valves.
Standards Compliance
» Design and manufacture: API 6D, BS5351,,ASME B16.34, GB/T12237
» Scoket Welded Ends: ASME B16.10, GB/T12221
» Screw Ends: ANSI B1.20.1; JB/T7306
» Butt-welded Ends: ANSI B16.25; JB/T12224
» Flanged Ends: ASME B16.5, GB/T9113
» Test and inspection: API 598, GB/T13927, JB/T9092
Materials of main parts
|
NO |
Part name |
Materail |
|
1 |
BODY |
ASTM A105, A182 F22, A182 F91 |
|
2 |
SEAT |
ASTM A105, A638 660, |
|
3 |
BALL |
1Cr13, A638 660 |
|
4 |
STEM |
1Cr13, A638 660 |
|
5 |
SEAL RING |
304SS+GRAPHITE |
|
6 |
SPRING |
INCONEL X-750 |
|
7 |
BOLT |
A193 B7, A193 B16 |
|
8 |
NUT |
A194 2H, A194 4, A194 7 |
Dimensions(mm) Class 150Lb
|
Size |
1/2 |
3/4 |
1 |
1-1/2 |
2 |
2-1/2 |
3 |
4 |
5 |
6 |
8 |
10 |
|
15 |
20 |
25 |
40 |
50 |
65 |
80 |
100 |
125 |
150 |
200 |
250 |
|
|
L |
108 |
117 |
127 |
165 |
178 |
190 |
203 |
229 |
356 |
394 |
457 |
533 |
|
H |
84 |
88 |
95 |
120 |
140 |
160 |
180 |
208 |
220 |
335 |
335 |
/ |
|
W |
130 |
130 |
140 |
250 |
250 |
400 |
400 |
450 |
450 |
1050 |
1500 |
/ |
Dimensions(mm) Class 300Lb
|
Size |
1/2 |
3/4 |
1 |
1-1/2 |
2 |
2-1/2 |
3 |
4 |
5 |
6 |
8 |
|
15 |
20 |
25 |
40 |
50 |
65 |
80 |
100 |
125 |
150 |
200 |
|
|
L |
140 |
152 |
165 |
191 |
216 |
241 |
283 |
305 |
381 |
403 |
502 |
|
H |
84 |
88 |
95 |
120 |
140 |
160 |
180 |
208 |
220 |
335 |
/ |
|
W |
130 |
130 |
140 |
250 |
250 |
400 |
400 |
450 |
450 |
1050 |
/ |
