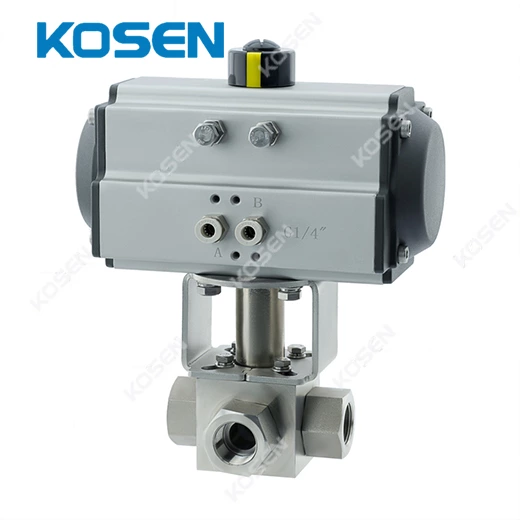

PNEUMATIC 3 WAY HYDRAULIC BALL VALVE

Product Description Pneumatic three-way hydraulic ball valve are mainly used to control the flow and cut-off of oil in hydraulic pipelines. This type of hydraulic ball valve has the characteristics o
Port size
DN6-DN50
Pressure
31.5Mpa, 21Mpa
Structure
T port or L port
Medium
hydraulic oil or others
Temperature
-20~+80℃ or higher temperature
Body material
A105 or F304 F316 F316L etc.
Connection
Threaded or others
Feature
For hydraulic oil system

Product Description

Pneumatic three-way hydraulic ball valve are mainly used to control the flow and cut-off of oil in hydraulic pipelines. This type of hydraulic ball valve has the characteristics of small flow resistance loss, reliable sealing performance, convenient operation and beautiful appearance.

Product usage

Pneumatic three-way hydraulic ball valve is mainly used in hydraulic system pipeline or integrated system to control the flow and cut-off of working medium. Hydraulic high-pressure ball valve products have been widely used in industrial hydraulic equipment, marine hydraulic system, mining and Metallurgical Hydraulic equipment, vehicle and engineering machinery hydraulic system, agricultural machinery, petroleum industrial equipment and so on.

Technical parameters

» Name and code: Pneumatic three-way hydraulic ball valve

» Applicable temperature: -20℃~+80℃ or high temperature;

» Nominal size: 6~50mm;

» Connection form: N-internal thread connection type W-external thread connection type B-plate connection type;

» Nominal pressure: 31.5Mpa or 21Mpa;

» Suitable medium: mineral oil, water, hydraulic system, ethylene glycol and emulsion.

» Product code: Ball stop valve

» Nominal pressure: J--31.5Mpa, H-21Mpa

» Nominal diameter: DN6,10,15,20,25,32,40,50,65mm

» Connection type: Threaded or others
