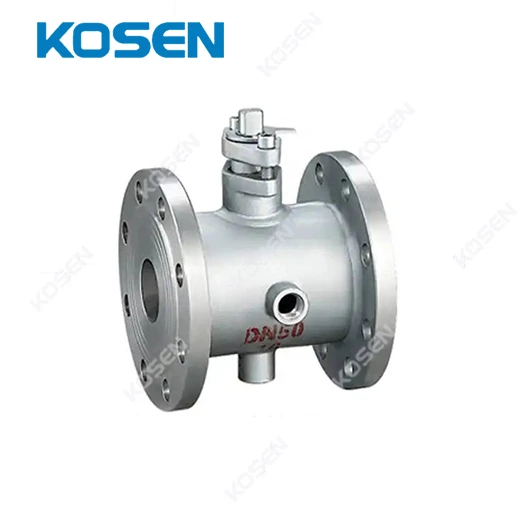

METAL SEATED JACKETED BALL VALVE

Product Description Jacketed thermal insulation ball valve this product has good thermal insulation and cold insulation characteristics, and the medium flows in a straight line when the valve diamete
Port size
1/2"~24" (DN15~DN600)
Pressure
PN10, PN16, CL150
Structure
Full jacketed design
Medium
Bitumen,asphalt,coal tar,pitch
Temperature
-29~425℃
Body material
WCB,CF8,CF8M,CF3,CF3M etc.
Connection
Flange
Feature
Full jacket or half jacket is optional.

Product Description

Jacketed thermal insulation ball valve this product has good thermal insulation and cold insulation characteristics, and the medium flows in a straight line when the valve diameter and pipe diameter reach the same level, with small resistance. It is more suitable for liquid medium with easy solidification and high viscosity. At the same time, it can effectively reduce the heat loss of the medium in the pipeline. The integral jacket design can keep heat and cold evenly. The jacket and the outside of the valve body are welded with the jacket nozzle, and the higher pressure of steam or cold water is allowed to be 1MPa. It is mainly used in petroleum, chemical, pharmaceutical, food and other systems to transport high viscosity media that will solidify at room temperature.

Standards Compliance

» Design and manufacturing standards: GB/T12224, ASME B 16.34

» Structural length standard: GB/T 12221-2005, ASME B 16.10

» Connection flange standard: JB/T 79, GB/T 9113, ASME B 16.5

» Pressure and temperature class: GB/T 12224-2005

» Test standard: GB/T 13927-2008, JB/T9092, API 598

» Size range: DN15x 25 To DN250 x 300, NPS ½" x 1" To 10" x 12"

» Pressure level: PN10~PN100, CL150~CL600

» Design standard: API608, ASME B16.34

» Connection mode: RF, RTJ, BW

» Structure: Single Piece or two pieces Design

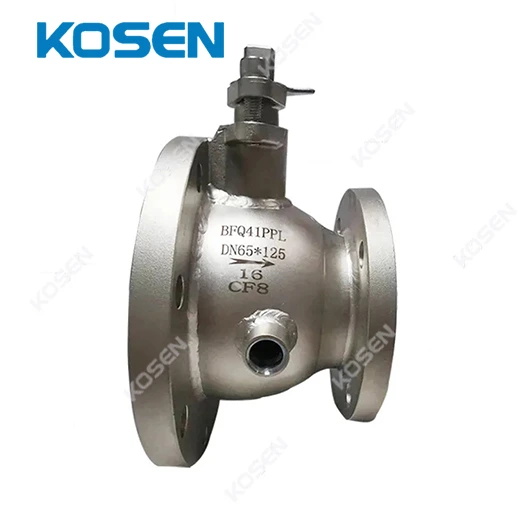

» Bore: Regular (Reduce) Bore Fully Jacketed Ball Valve

» Main material: carbon steel, alloy steel, stainless steel, duplex steel, nickel base alloy, etc

» Operation:Manual,pneumatic,electric actuator

» Applicable medium: water, steam, oil, corrosive medium, etc

Dimensions(mm)

Size

d

L

E

Q

H

W

P

20

19

117

58.5

147

101

170

G 3/4"

25

25

127

62.5

156

106

170

G 3/4"

40

38

165

63.5

181

125

250

G 3/4"

50

51

178

68

218

135

250

G 3/4"

80

76

229

82

275

193

350

G 3/4"

100

102

254

83

300

265

420

G 3/4"

150

152

292

95

403

355

800

G 3/4"

200

203

330

100

492

410

800

G 3/4"
