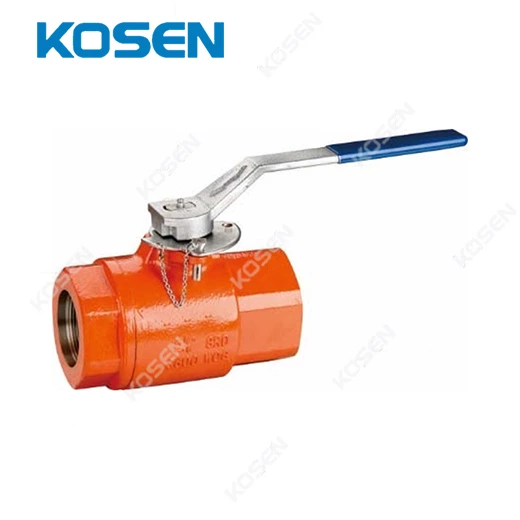

OIL FIELD STAINLESS STEEL BALL VALVE FP

Product Description This is a ball valve for oil field, including a ball valve body and a valve tube. The left and right sides of the ball valve body are equipped with valve tubes. The right side of
Port size
2-3/8”, 2-7/8”
Pressure
2000, 3000, 3600 W.O.G Full Port
Structure
2PCS
Medium
Water,steam,oil,gas
Temperature
-20~150ºC
Body material
Carbon Steel, Stainless Steel
Connection
Threads Conform to ASME B1.20.1(NPT)
Feature
China Oil Field Ball Valve manufacturing

Product Description

This is a ball valve for oil field, including a ball valve body and a valve tube. The left and right sides of the ball valve body are equipped with valve tubes. The right side of the inner cavity of the ball valve body is equipped with a second slide rail. The valve rod runs through the ball valve body. A stable block is installed at the top of the valve rod, a handwheel is fixedly installed at the top of the stable block, and a limit device is installed in the inner cavity of the valve rod.

Structural Features

2000 3000 3600 W.O.G.FULL PORT

STAINLESS STEEL/CARBON STEEL BODY

BLOW OUT PROOF STEM

DELRIN SEAT

INSPECTION AND TEST:API598

THREADS CONFORM TO API 5B

NACE MR-01-75

Materials of main parts

No

Part

Matarial

1

BODY

ASTM A351 CF8M

ASTM A216 WCB

2

BODY SEAL

VITON

VITON

3

BOONET

ASTM A351 CF8M

ASTM A216 WCB

4

SEATS

DELRIN

DELRIN

5

BALL

ASTM A182 F316

ASTM A276 420

6

STEM

ASTM A276 316

ASTM A276 420

7

STEM BEARING

PTFE

PTFE

8

STEM SEAL

VITON

VITON

9

THRUST BEARING

PTFE

PTFE

10

STOP PLATE

STAINLESS STEEL

CS+Ni

11

PIN WITH CHAIN

STAINLESS STEEL

STAINLESS STEEL

12

RETAINER RING

STAINLESS STEEL

SPRING STEEL

13

BOLTS

STAINLESS STEEL

SPRING STEEL

14

STOP SCREW

STAINLESS STEEL

CARBON STEEL

15

GREASE ZERK

CARBON STEEL

CARBON STEEL

16

HANDLE

DUCTILE IRON

DUCTILE IRON

Dimensions(in)

Size

Port

Pressure

L

H

d

NPT

L0

Weight

(Lbs)

Torque

(in.Lb)

2-3/8”

FP

3600PSI

8.5

5.9

2.07

2-3/8”

15

29.54

2035

2-7/8”

FP

3600PSI

8.5

6.35

2.56

2-7/8”

15

45.75

3200
