STAINLESS STEEL BUTT WELD BALL VALVE

Product Description Three piece internal thread ball valve and butt welding connection ball valve are applicable to various pipelines with PN1.0 ~ 4.0Mpa, working temperature of -29 ~ 180 ℃ (the seal
Port size
1/2”~4” 1000 W.O.G
Pressure
1000PSI/2000PSI
Structure
3 PIECE BODY
Medium
Water,steam,oil,gas
Temperature
-20~150ºC
Body material
CF8 CF3 CF8M CF3M or others
Connection
BW,SW,Thread,flange,clamp is optional
Feature
ISO 5211 direct mount is optional

Product Description

Three piece internal thread ball valve and butt welding connection ball valve are applicable to various pipelines with PN1.0 ~ 4.0Mpa, working temperature of -29 ~ 180 ℃ (the sealing ring is reinforced polytetrafluoroethylene) or -29 ~ 300 ℃ (the sealing ring is aligned polystyrene) for cutting off or connecting the medium in the pipeline. Different materials can be used for water, steam, oil, nitric acid, acetic acid and other media.

Structural Features

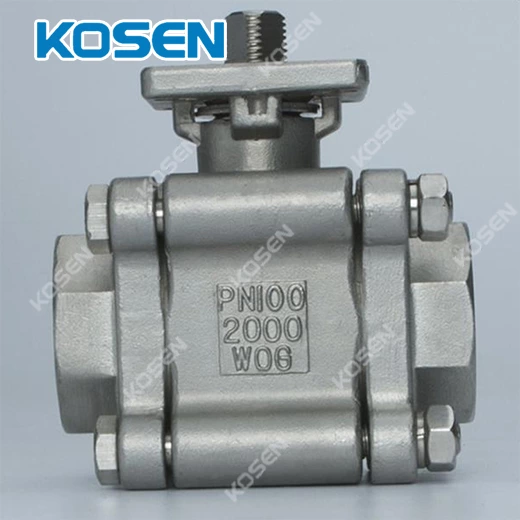

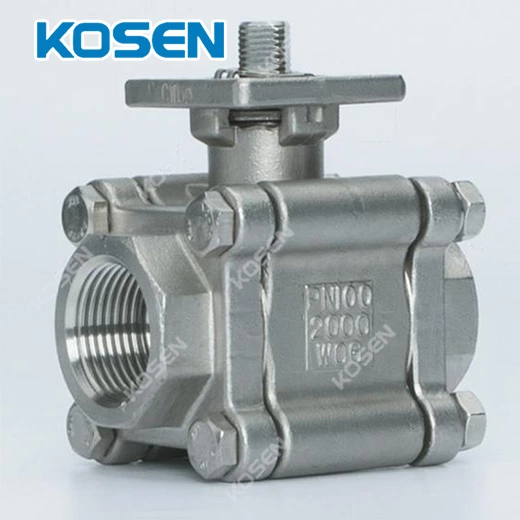

Product name: Stainless Steel Floating Ball Valve

Size: 1/2" -4" (DN15-DN100)

Material: SS201, SS304, SS316(CF8, CF8M)

Pressure: 1000PSI, PN16

Suitable medium: water, oil, air and some corrosive liquid etc(WOG)

Temperature Range: -20-250 degree C

Connection: F/F threaded

Type of thread: NPT, BSPT, BSP, PT, DIN2999 ETC

Sealing: PTFE, RPTFE, PPL ETC

Materials of main parts

 No

Part

Matarial

1

BODY

ASTM A351 CF8, CF8M

2

SEAT

PTFE/RPTFE/PPL

3

CAP

ASTM A351 CF8, CF8M

4

BALL

SS304,SS316

5

STEM

SS304,SS316

6

NUT

SS304

7

GASKET

SS304

8

HOLSTER

PVC

9

HANDLE

SS201

10

STEM NUT

SS304

11

NUT

SS304

12

PACKING

SS304

13

THRUST WASHER

SS304

14

BOLT

SS304

Dimensions(mm)

Size

Port

Pressure

d

L

H

W

1/4"

FP

1000PSI

11.6

68

100

100

3/8”

FP

1000PSI

12.7

68

100

100

1/2"

FP

1000PSI

15

72

130

130

3/4"

FP

1000PSI

20

82

130

130

1"

FP

1000PSI

25

90

165

165

1-1/4"

FP

1000PSI

32

112

165

165

1-1/2"

FP

1000PSI

38

120

190

190

2"

FP

1000PSI

50

145

190

190

2-1/2"

FP

1000PSI

65

185

250

250

3"

FP

1000PSI

80

210

250

250

4"

FP

1000PSI

100

250

280

280
