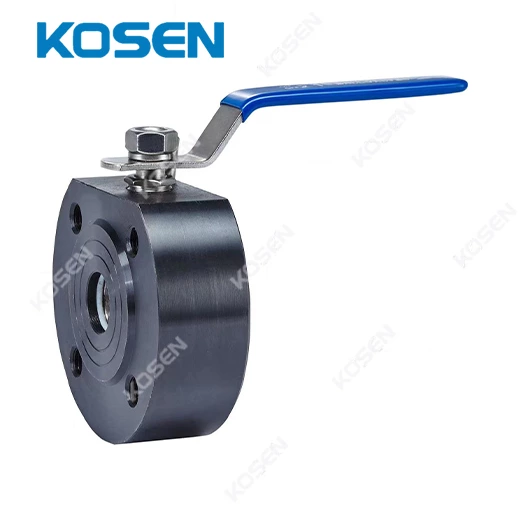

WAFER BALL VALVE

Product Description The ball valve with clamp connection has the characteristics of natural anti-static structure, anti-misoperation structure and reliable sealing of valve stem. The valve body adopt
Port size
1"~6" (DN25~DN50)
Pressure
PN16~PN40, CL150
Structure
1PC, Short length, Wafer type
Medium
Water,steam,oil,gas
Temperature
-29~150℃
Body material
A105 A105N or WCB,304, 316, F304, F316, etc
Connection
Wafer type
Feature
Short length,Compact structure

Product Description

The ball valve with clamp connection has the characteristics of natural anti-static structure, anti-misoperation structure and reliable sealing of valve stem. The valve body adopts an integral structure. Through precise processing and assembly, the ball core is loaded from one end, and the compression ring is tightened to keep good contact and sealing between the two soft sealing seats and the ball core. The valve pressure ring inner gasket is also well sealed so that the leakage of the valve is zero. Because of the integral structure of the valve body, so the valve to achieve ultra-short flange distance, the weight of the machine greatly reduced, only about 50% of the same kind of ordinary ball valve.

Product standards for wafer ball valves

» Design and manufacturing standards: API 6D, API 608, BS 5351

» Structural length standard: ASME B 16.10

» Connecting flange standard: JIS B2238

» Test standards: API 598, ISO 5208

» Caliber: NPS ~ NPS6, DN15 ~ DN150

» Pressure: PN10~PN40, CLASS150~CLASS300

» Material: carbon steel, stainless steel, alloy steel, dual phase steel.

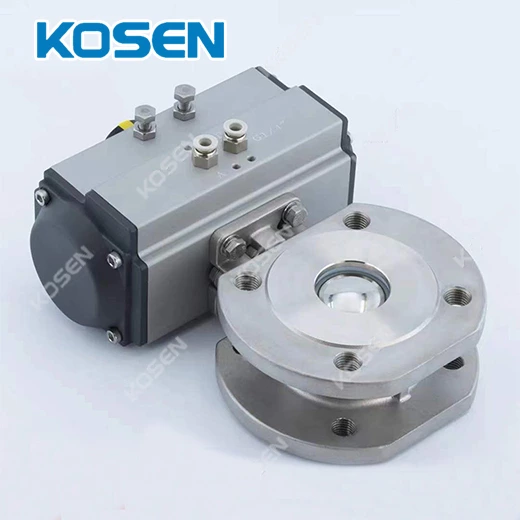

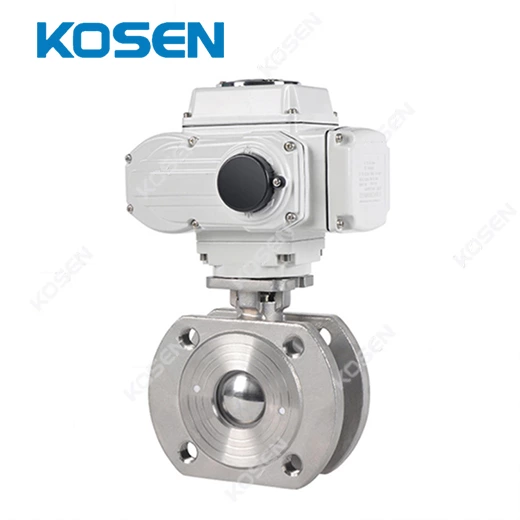

» Drive: manual, worm wheel drive, electric, pneumatic.

» Applications: petroleum, chemical, natural gas, petrochemical, coal chemical industry and other industries.

Materials of main parts

No

Part name

Materail

1

BODY

WCB, CF8, CF8M

2

BALL

SS304, SS316

3

SEAT

PTFE

4

STEM

SS304, SS316

5

PACKING

PTFE

6

POSITIONING LOCK

SS304

7

HANGLE

SS304

Dimensions(mm)

DN

L

D

H

E

15

35

15

70

145

20

40

19

77

145

25

44

25

75

166

32

52

32

88

166

40

62

38

100

206

50

78

48

108

206

65

101

64

115

240

80

120

78

135

240

100

143

92

145

240
