L TYPE THREE WAY BALL VALVE

Product Description The three-way L-type ball valve adopts an integrated structure in structure. The sealing type of 4-sided valve seat has high reliability. The design realizes lightweight, long ser
Port size
DN15-DN600;1/2''-24''
Pressure
CL150-CL2500
Structure
T port or L port
Medium
Water,steam,oil,gas
Temperature
-29~150℃,-40~450℃
Body material
Carbon Steel, Stainless Steel,forged steel
Connection
Flanged end or others
Feature
3 way ball valve manufacturer

Product Description

The three-way L-type ball valve adopts an integrated structure in structure. The sealing type of 4-sided valve seat has high reliability. The design realizes lightweight, long service life, large flow capacity and small resistance. Three way L-type ball valve has T-type and L-type. T-type ball valve can connect three orthogonal pipelines and cut off the third channel, which plays the role of diversion and confluence. The L-shaped ball valve can only connect two mutually orthogonal pipelines, and cannot maintain the interconnection of the third pipeline at the same time. It only plays a distribution role.

Technical Specification

Design standard: GB/T 12237-1989, DIN 3357/1, API 608

Flange standards: GB/T 911 3.1, JB/T 79, DIN 3202, JIS B2002, ASME B16.10

Structural standard: GB/T 12221-1989, DIN 3202, JLS B2002, ASME 16.10

Inspection standard: GB/T 13927 DLN 3230/3, API 598 JIS B 2003

Body Materials: Carbon Steel, Stainless Steel, Alloy Steel, Duplex Steel

Trim: Carbon Steel, Stainless Steel, Duplex Steel

Actuated flanged 3 way ball valve Design: BS5351, ANSI B16.34, DIN, JIS

Actuated flanged 3 way ball valve Mounting Pad: ISO5211

Pneumatic Actuator Air Supply: 3bar~7bar

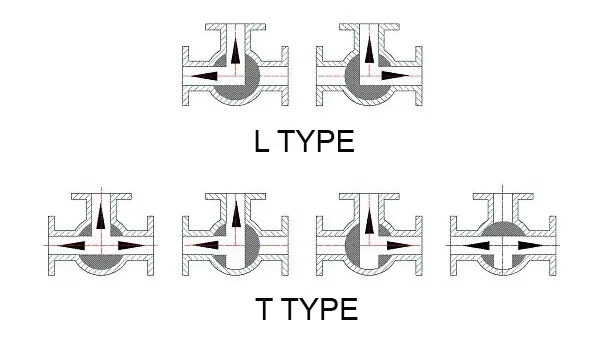

Structure diagram

L TYPE THREE WAY BALL VALVE
