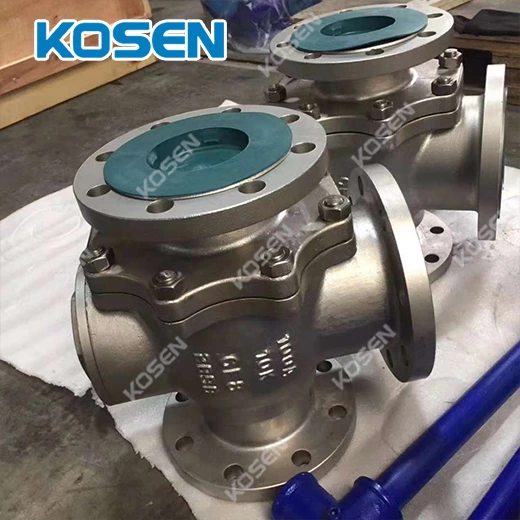

T PORT STAINLESS STEEL 3 WAY BALL VALVE
- Port size
- DN15-DN600, 1/2''-24''
- T port
- Body material
- CF8,CF8M,CF3,CF3M etc.
- Flanged end or others
- 3 way ball valve manufacturer

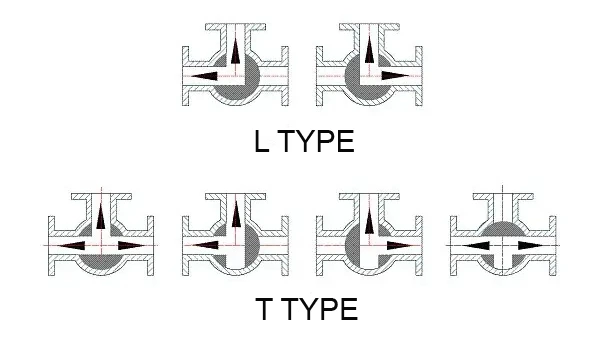

The T-port stainless steel three-way ball valve adopts an integrated structure in structure. The sealing type of four-sided valve seat has high reliability. The design realizes lightweight, long service life, large flow capacity and small resistance. American standard three-way ball valve has T-type and L-type. T-shape can connect three orthogonal pipelines and cut off the third channel, which plays the role of diversion and confluence. The L-shape can only connect two mutually orthogonal pipelines, and cannot maintain the interconnection of the third pipeline at the same time. It only plays a distribution role.
Design standard: GB/T 12237-1989, DIN 3357/1, API 608
Flange standards: GB/T 911 3.1, JB/T 79, DIN 3202, JIS B2002, ASME B16.10
Structural standard: GB/T 12221-1989, DIN 3202, JLS B2002, ASME 16.10
Inspection standard: GB/T 13927 DLN 3230/3, API 598 JIS B 2003
Body Materials: Carbon Steel, Stainless Steel, Alloy Steel, Duplex Steel
Trim: Carbon Steel, Stainless Steel, Duplex Steel

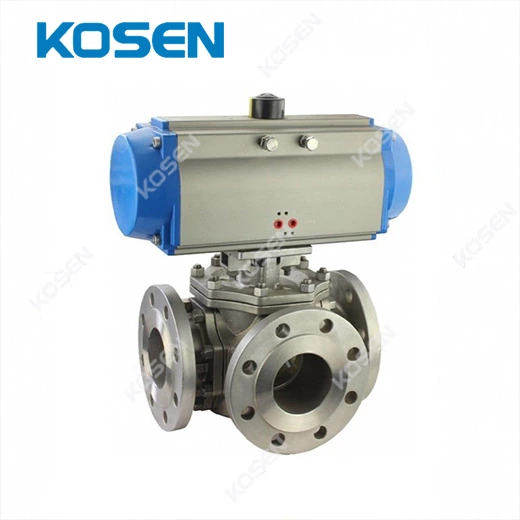

Actuated flanged 3 way ball valve Design: BS5351, ANSI B16.34, DIN, JIS
Actuated flanged 3 way ball valve Mounting Pad: ISO5211
Pneumatic Actuator Air Supply: 3bar~7bar
