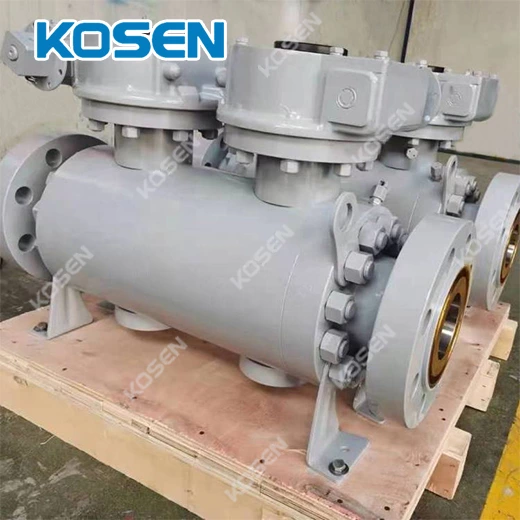

DOUBLE BLOCK AND BLEED BALL VALVE (DBB BALL VALVE)

Product Description Trunnion mounted DBB ball valve (Double block & bleed ball valve) is trunnion mounted structure,which has three valves in valve.High Pressure double block and bleed ball valve
Port size
1/2"~24" (DN15~DN600)
Pressure
CL150-CL2500
Structure
Trunnion mounted ball
Medium
Water,steam,oil,gas
Temperature
-29~150℃, -40~450℃
Body material
A105 LF2 F304 F316 F316L or others
Connection
Flange
Feature
DBB ball valve manufacturer

Product Description

Trunnion mounted DBB ball valve (Double block & bleed ball valve) is trunnion mounted structure,which has three valves in valve.High Pressure double block and bleed ball valve as a single valve with two seating surfaces that, in the closed position, provides a seal against pressure from both ends of the valve with a means of vending/bleeding the cavity between the seating surfaces.The DBB double ball valve is designed to replace the complicated connection of multiple valves in the traditional pipeline. Reduce the leakage point in the system, quickly achieve emissions and shut down function. The DBB double ball valve saves the installation space limit. The installation program is simplified. Reduce the pressure of the pipe system.

Technical Specification

» Normal Size Range: 1/2"-24"

» Normal Pressure Rating: PN10~PN420, CLASS150~2500

» Material: A105, LF2, F304, F316, F316L or others

» Temperature Range: -29~150Degree C

Standards compliance

» Design and Manufacture: API 608,API 6D,BS5351

» Face to face(end to end): ANSI B16.10,API 6D

» Flanged connection: ANSI B16.5

» Fire-safe: API 607,API 6FA

» Butt welded end: ANSI B16.25

» Test and inspection: API 598,API 6D

Industrial applications

» Double block & bleed

» Level Measurement

» Pressure Measurement

» Chemical Injection

» Sampling

» Flow Measurement
