FULL BORE FLOATING DBB BALL VALVE

Product Description

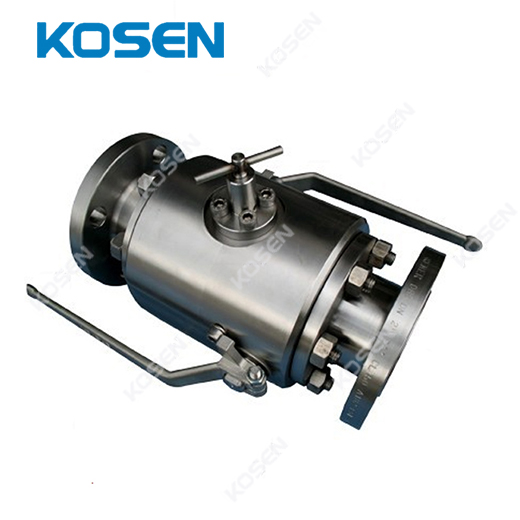

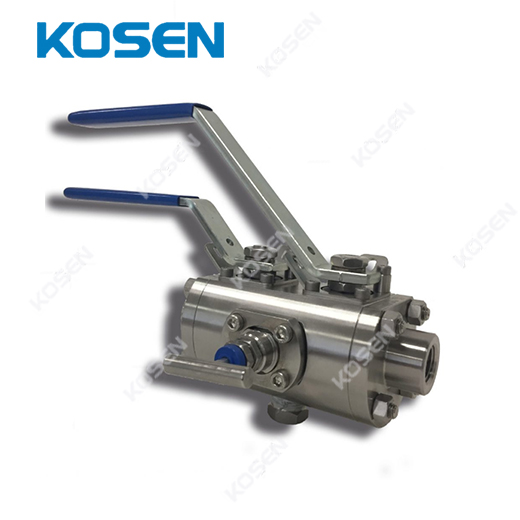

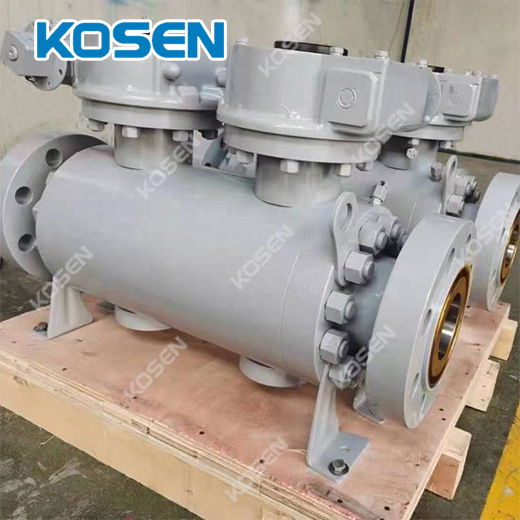

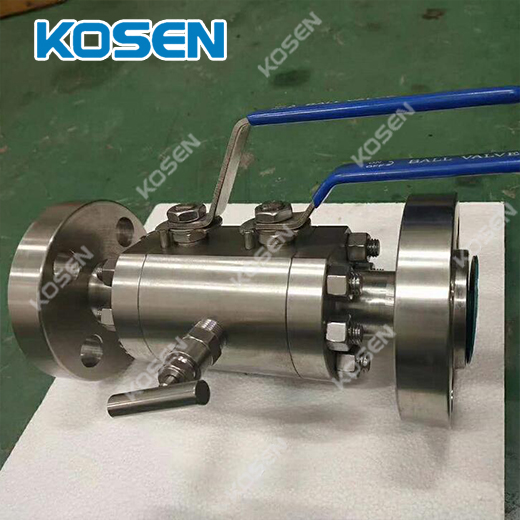

Double block bleed floating DBB Ball Valve can be double flange or single flange design, Double block bleed floating DBB Ball Valve have two balls and one or two needle valves,the two ball valves can opend and closed the medium and two needle valves can discharge pressure of the valves,Double block bleed floating DBB Ball Valve is designed to replace the complex form of the connection of multiple valves in traditional pipes,so as to reduce leakage points in the system and realize fast discharging and closing.Double block bleeding floating DBB Ball Valve saves the installation procedures,reduces pressure in the pipe system,facilities instrument cleaning and maintenance and lowers the cost.

Technical Specification

» Normal Size Range: Threaded: ¼” through 1”  Flange: ½” to 12”

» Normal Pressure Rating: Threaded :6,000 & 10,000 Psig ratings

» Normal Pressure Rating: Flange: CLASS150Lb~2500Lb

» Material: A105, LF2, F304, F316, F316L or others

» Temperature Range: -29~150Degree C

» Full Bore And Reduced Bore Design

» Flanged, Welding, Hub, Threaded Ends

» Anti Blow‐Out Stem

» Anti Static Device

» Fire Safe Design

Standards compliance

» Design and Manufacture: API 608,API 6D,BS5351

» Face to face(end to end): ANSI B16.10,API 6D

» Flanged connection: ANSI B16.5

» Fire-safe: API 607,API 6FA

» Butt welded end: ANSI B16.25

» Test and inspection: API 598,API 6D

Industrial applications

» Double block & bleed

» Level Measurement

» Pressure Measurement

» Chemical Injection

» Sampling

» Flow Measurement
