FEMALE THREAD HYDRAULIC BALL VALVE

Product Description YJZQ series of hydraulic high-pressure ball valves are mainly used to control the flow and cut-off of oil in hydraulic pipelines. This type of hydraulic ball valve has the charact
Port size
DN6-DN65
Pressure
31.5Mpa, 21Mpa
Structure
Floating ball
Medium
hydraulic oil or others
Temperature
-20~+80℃ or higher temperature
Body material
A105 or F304 F316 F316L etc.
Connection
Female thread
Feature
For high pressure hydraulic oil or others

Product Description

YJZQ series of hydraulic high-pressure ball valves are mainly used to control the flow and cut-off of oil in hydraulic pipelines. This type of hydraulic ball valve has the characteristics of small flow resistance loss, reliable sealing performance, convenient operation and beautiful appearance.

Product usage

YJZQ hydraulic high pressure ball valve is mainly used in hydraulic system pipeline or integrated system to control the flow and cut-off of working medium. Hydraulic high-pressure ball valve products have been widely used in industrial hydraulic equipment, marine hydraulic system, mining and Metallurgical Hydraulic equipment, vehicle and engineering machinery hydraulic system, agricultural machinery, petroleum industrial equipment and so on.

Technical parameters

» Name and code: hydraulic ball valve

» Applicable temperature: -20℃~+80℃ or high temperature;

» Nominal size: 6~65mm;

» Connection form: N-internal thread connection type W-external thread connection type B-plate connection type;

» Nominal pressure: 31.5Mpa or 21Mpa;

» Suitable medium: mineral oil, water, hydraulic system, ethylene glycol and emulsion.

» Product code: Ball stop valve

» Nominal pressure: J--31.5Mpa, H-21Mpa

» Nominal diameter: DN6,10,15,20,25,32,40,50,65mm

» Connection type: N--Femle thread (NG--British pipe thread), W--Male thread,B--Board type

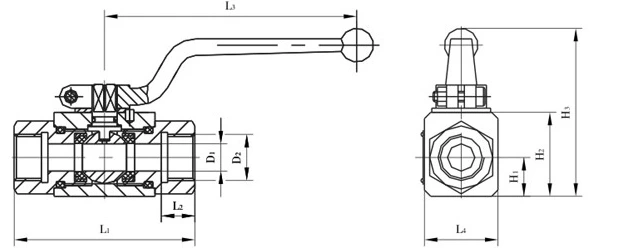

Structure diagram



FEMALE THREAD HYDRAULIC BALL VALVE

Dimensions (mm)

Model

D1

D2

L1

L2

L3

L4

H1

H2

H3

YJZQ-J10N

Ф10

M18×1.5

78

14

105

32

16

36

76

YJZQ-J15N

Ф15

M22×1.5

86

16

147

38

19

45

80

YJZQ-J20N

Ф20

M27×2

108

18

185

48

25

55

101

YJZQ-J25N

Ф25

M33×2

116

20

185

57

28.5

64

111

YJZQ-J32N

Ф32

M42×2

136

22

240

75

37.5

84

134

YJZQ-J40N

Ф40

M48×2

148

24

240

85

42.5

95

165

YJZQ-J50N

Ф50

M64×2

180

26

240

104

52

112.5

180
