MALE THREADED HYDRAULIC BALL VALVE

Port size:
DN6-DN65
Pressure:
31.5Mpa, 21Mpa
Structure:
Floating ball
Medium:
hydraulic oil or others
Temperature:
-20~+80℃ or higher temperature
Body material:
A105 or F304 F316 F316L etc.
Connection:
Female thread
Feature:
For high pressure hydraulic oil or others
MALE THREADED HYDRAULIC BALL VALVE

Product Description

YJZQ series of hydraulic high-pressure ball valves are mainly used to control the flow and cut-off of oil in hydraulic pipelines. This type of hydraulic ball valve has the characteristics of small flow resistance loss, reliable sealing performance, convenient operation and beautiful appearance.

Product usage

YJZQ hydraulic high pressure ball valve is mainly used in hydraulic system pipeline or integrated system to control the flow and cut-off of working medium. Hydraulic high-pressure ball valve products have been widely used in industrial hydraulic equipment, marine hydraulic system, mining and Metallurgical Hydraulic equipment, vehicle and engineering machinery hydraulic system, agricultural machinery, petroleum industrial equipment and so on.

Technical parameters

» Name and code: hydraulic ball valve

» Applicable temperature: -20℃~+80℃ or high temperature;

» Nominal size: 6~65mm;

» Connection form: N-internal thread connection type W-external thread connection type B-plate connection type;

» Nominal pressure: 31.5Mpa or 21Mpa;

» Suitable medium: mineral oil, water, hydraulic system, ethylene glycol and emulsion.

» Product code: Ball stop valve

» Nominal pressure: J--31.5Mpa, H-21Mpa

» Nominal diameter: DN6,10,15,20,25,32,40,50,65mm

» Connection type: N--Femle thread (NG--British pipe thread), W--Male thread,B--Board type

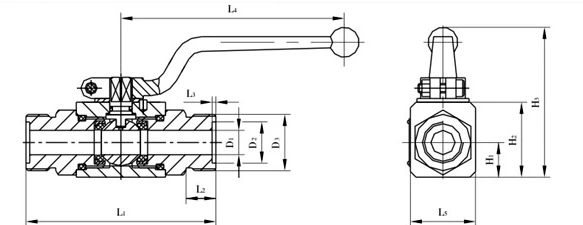

Structure diagram



Dimensions (mm)

Model

D1

D2

D3

L1

L2

L3

L4

L5

H1

H2

H3

YJZQ-J10W

Ф10

Ф20

M27×1.5

94

16

2

105

32

16

36

76

YJZQ-J15W

Ф15

Ф22

M30×1.5

102

16

2

147

38

19

45

80

YJZQ-J20W

Ф20

Ф28

M36×2

124

18

2.5

185

48

25

55

101

YJZQ-J25W

Ф25

Ф35

M42×2

136

20

2.5

185

57

28.5

64

111

YJZQ-J32W

Ф32

Ф40

M52×2

150

20

2.5

240

75

37.5

84

134

YJZQ-J40W

Ф40

Ф50

M64×2

180

24

2.5

240

85

42.5

95

165

YJZQ-J50W

Ф50

Ф60

M72×2

210

26

2.5

240

104

52

112.5

180
