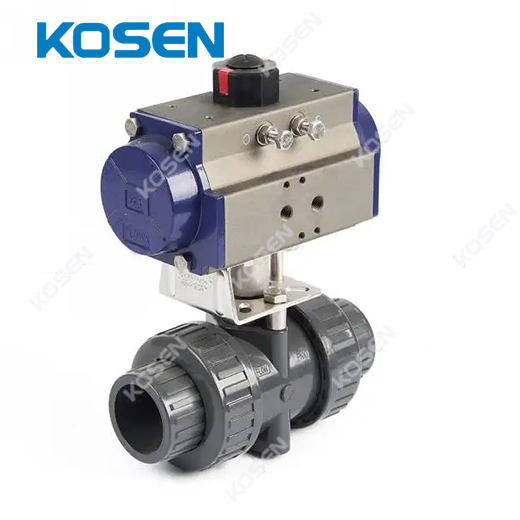

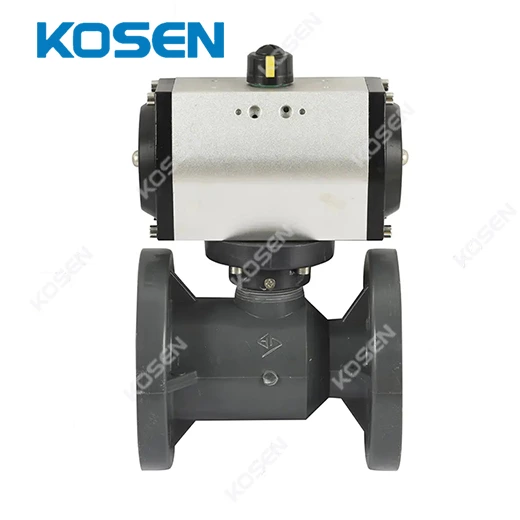

PNEUMATIC PPH PLASTIC BALL VALVE

Port size:
1/2"~4" (DN15~DN100)
Pressure:
0.6Mpa-1.6Mpa
Structure:
Floating ball
Medium:
Water or other special liquid
Temperature:
According to different material
Body material:
PVC PPH PVDF RPP
Connection:
Flange or union
Feature:
on off or regulating actuator is optional
PNEUMATIC PPH PLASTIC BALL VALVE

Product Description

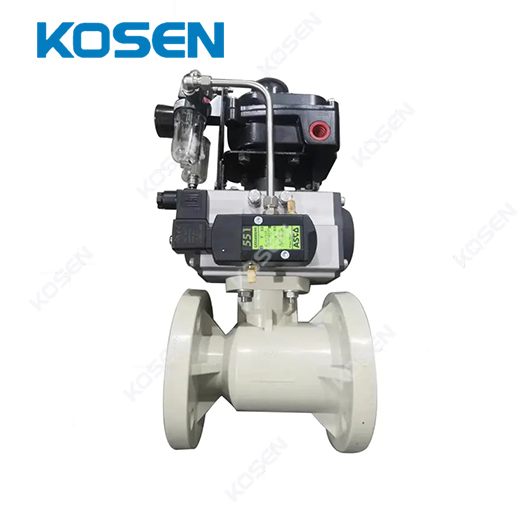

Pneumatic plastic ball valve, Pneumatic (UPVC, CPVC, PVC, PVDF) ball valves are equipped with pneumatic actuators. The pneumatic actuator has a relatively fast execution speed, with a switching speed of 0.05 s / time, so it is usually called pneumatic quick cut-off ball valve. The pneumatic plastic ball valve is usually equipped with various accessories, such as solenoid valve, air source treatment triplet, limit switch, positioner, control box, etc., to realize local control and remote centralized control. The valve can be controlled in the control room without running to the site or high altitude and dangerous areas for manual control, which saves human resources, time and safety to a certain extent.

Technical parameter

» Drive: compressed air 5 ~ 7bar(with handwheel)

» Nominal size: 15~100mm (flange);15~50mm(union);

» Nominal pressure: 0.6 ~ 1.6mpa

» Applicable temperature: 0 ~ +60℃

» Connection mode: by command

» Ball valve structure: one - piece

» Material of valve body: PVC PPH PVDF RPP

» Suitable medium: compatible chemical solvent for food industry

» Response: also known as limit switch (APL310NAPL210N), Remote feedback switch

Signal (Explosion proof)(APL410N ITS300)

» Solenoid valve: double - action two five - way, single - action two three - way (explosion - proof)PLVD5/2

» Triplet: it can stabilize the air source, filter and add lubricating oil AFC200 to the cylinder

» Handwheel mechanism: Turn the handwheel mechanism to open and close the valve manually

» Positioner: Input 4 ~ 20mA signal to realize valve adjustment function YT1000R

» Note: Please refer to the selected pneumatic actuators for cylinder parameters
