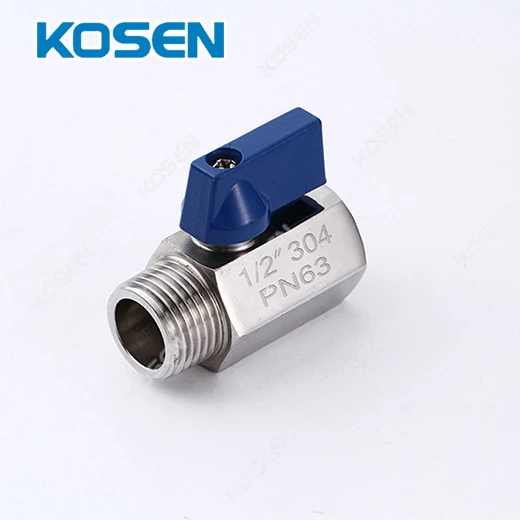

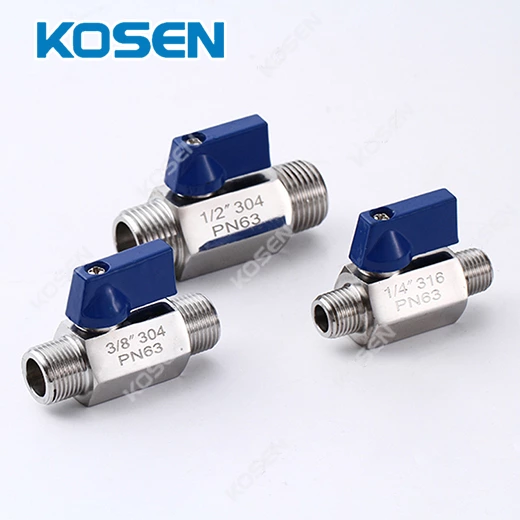

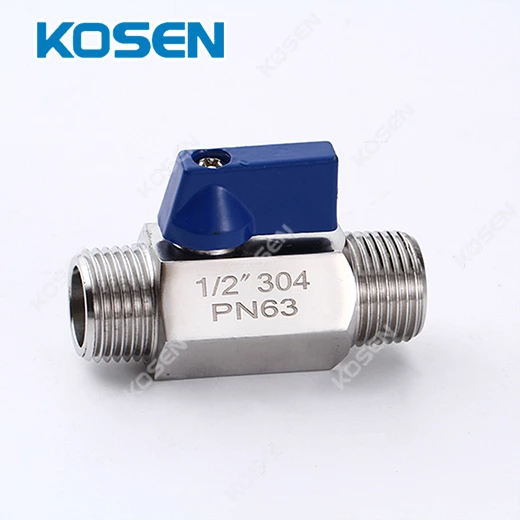

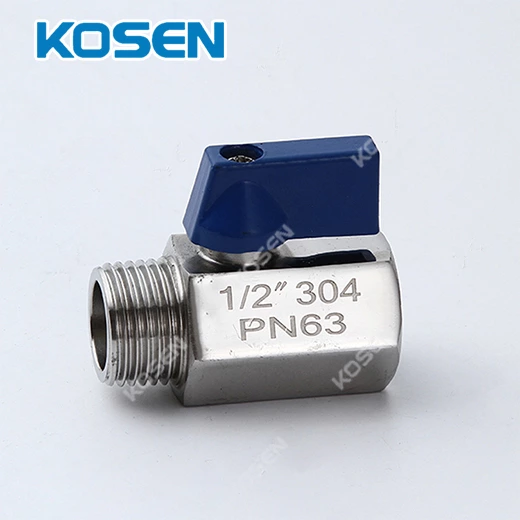

1 PIECE STAINLESS STEEL MINI BALL VALVE

Product Description The mini ball valve has a variety of interfaces including internal and external threads, internal threads and external threads. It is made of stainless steel 304 and 316, with san
Port size
1/4”~1” 1000 W.O.G
Pressure
1000PSI
Structure
ONE PIECE BODY
Medium
Water,steam,oil,gas
Temperature
-20~150ºC
Body material
STAINLESS STEEL
Connection
Threads Conform to ASME B1.20.1(NPT)
Feature
China Threaded End Ball Valve manufacturing

Product Description

The mini ball valve has a variety of interfaces including internal and external threads, internal threads and external threads. It is made of stainless steel 304 and 316, with sanitary design and internal and external mirror technology, meeting the requirements of clean fluid. The stainless steel mini ball valve has compact structure, small size, good sealing performance, flexible switch, large flow, exquisite appearance and superior quality.

Structural Features

Nominal pressure: 1000PSI, PN63

Applicable temperature range:

Applicable medium: -29 ℃ >120 ℃ different materials can be used for water, oil, gas and some corrosive liquids

Thread type: G · NPT, Pt, RP, RC, DIN 259/2999

Materials of main parts

No

Part

Matarial

1

BODY

ASTM A351 CF8, CF8M

2

SEAT

PTFE/RPTFE

3

BALL

SS304, SS316

4

NUT

SUS304

5

GASKET

PTFE/RPTFE

6

O-RING

FKM(VITON)

7

STEM

SS304, SS316

8

HANDLE

Aluninnum

9

NUT

SS304

Dimensions(mm)

SIZE

Port

Pressure

d

L

H

E

1/4"

RP

1000PSI

5

42

26.5

22.8

3/8"

RP

1000PSI

8

42

26.5

22.8

1/2"

RP

1000PSI

9

46

28.3

22.8

1"

RP

1000PSI

15

65

34

22.8

3/4"

RP

1000PSI

12.5

54

31.5

22.8

1"

RP

1000PSI

15

65

34

22.8
