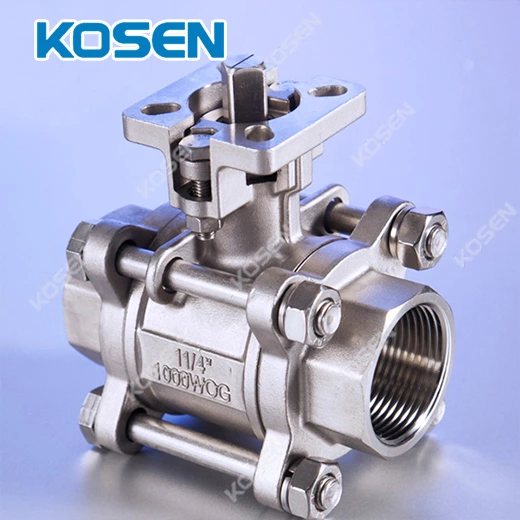

3 PIECE THREADED BALL VALVE

Product Description Three piece internal thread ball valve and butt welding connection ball valve are applicable to various pipelines with PN1.0 ~ 4.0Mpa, working temperature of -29 ~ 180 ℃ (the seal

Port size

1/4”~4” 1000 W.O.G

Pressure

1000PSI

Structure

3 PIECE BODY

Medium

Water,steam,oil,gas

Temperature

-20~150ºC

Body material

STAINLESS STEEL

Connection

Threads Conform to ASME B1.20.1(NPT)

Feature

China Threaded End Ball Valve manufacturing

Product Description

Three piece internal thread ball valve and butt welding connection ball valve are applicable to various pipelines with PN1.0 ~ 4.0Mpa, working temperature of -29 ~ 180 ℃ (the sealing ring is reinforced polytetrafluoroethylene) or -29 ~ 300 ℃ (the sealing ring is aligned polystyrene) for cutting off or connecting the medium in the pipeline. Different materials can be used for water, steam, oil, nitric acid, acetic acid and other media.

Structural Features

Product name: Stainless Steel Floating Ball Valve

Size: 1/2" -4" (DN15-DN100)

Material: SS201, SS304, SS316(CF8, CF8M)

Pressure: 1000PSI, PN16

Suitable medium: water, oil, air and some corrosive liquid etc(WOG)

Temperature Range: -20-250 degree C

Connection: F/F threaded

Type of thread: NPT, BSPT, BSP, PT, DIN2999 ETC

Sealing: PTFE, RPTFE, PPL ETC

Materials of main parts

No	Part	Matarial
1	BODY	ASTM A351 CF8, CF8M
2	SEAT	PTFE/RPTFE/PPL
3	CAP	ASTM A351 CF8, CF8M
4	BALL	SS304,SS316
5	STEM	SS304,SS316
6	NUT	SS304
7	GASKET	SS304
8	HOLSTER	PVC
9	HANDLE	SS201
10	STEM NUT	SS304
11	NUT	SS304
12	PACKING	SS304
13	THRUST WASHER	SS304
14	BOLT	SS304

Dimensions(mm)

Size	Port	Pressure	d	L	H	W
1/4"	FP	1000PSI	11.6	68	100	100
3/8”	FP	1000PSI	12.7	68	100	100
1/2"	FP	1000PSI	15	72	130	130
3/4"	FP	1000PSI	20	82	130	130
1"	FP	1000PSI	25	90	165	165
1-1/4"	FP	1000PSI	32	112	165	165
1-1/2"	FP	1000PSI	38	120	190	190
2"	FP	1000PSI	50	145	190	190
2-1/2"	FP	1000PSI	65	185	250	250
3"	FP	1000PSI	80	210	250	250
4"	FP	1000PSI	100	250	280	280
