THREE WAY THREADED BALL VALVE

Product Description Three way threaded ball valve has T-type and L-type. T-shape can make three orthogonal pipelines connect with each other and cut off the third channel, playing the role of diversi

Port size

1/4”~2” 1000 W.O.G

Pressure

1000PSI

Structure

3 WAY BODY

Medium

Water,steam,oil,gas

Temperature

-20~150ºC

Body material

STAINLESS STEEL

Connection

Threads Conform to ASME B1.20.1(NPT)

Feature

China Threaded End Ball Valve manufacturing

Product Description

Three way threaded ball valve has T-type and L-type. T-shape can make three orthogonal pipelines connect with each other and cut off the third channel, playing the role of diversion and confluence. The L-shaped three-way threaded ball valve can only connect two mutually orthogonal pipelines, and cannot maintain the interconnection of the third pipeline at the same time. It only plays a distribution role.

Structural Features

Product name: Three Way Threaded Ball Valve

Size: 1/4" -2" (DN6-DN50)

Material: SS304, SS316(CF8, CF8M)

Pressure: 1000PSI, PN16

Suitable medium: water, oil, air and some corrosive liquid etc(WOG)

Temperature Range: -20-250 degree C

Connection: F/F threaded

Type of thread: NPT, BSPT, BSP, PT, DIN2999 ETC

Sealing: PTFE, RPTFE, PPL ETC

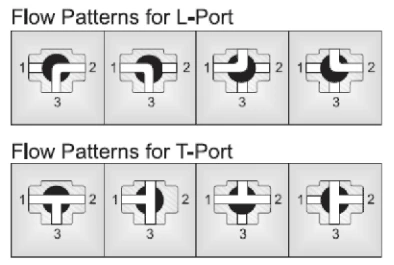

Flow direction diagram

Materials of main parts

No	Part	Matarial
1	BONNET	A351 CF8, CF8M
2	SEAT	PTFE/RPTFE/PPL
3	BALL	SUS316
4	BODY	A351 CF8, CF8M
5	PACKING	PTFE/RPTFE/PPL
6	STEM	SUS316
7	INSTRUCTIONS	SUS304
8	NUT	A194-8
9	GASKAT	SUS304
10	SEAL RING	PTFE
11	THRUST WASHER	PTFE
12	GLAND	SUS304
13	HANDLE	SUS201
14	LOCK PLATE	SUS201
15	HOLSTER	PVC

Dimensions(mm)

Size	d	L	B	H	H1	E	ØA1	ØC1	P	ISO
1/4"	8	50	25	61	28	120	36	M5	5	F03
3/8"	8	50	25	61	28	120	36	M5	5	F03
1/2"	12	68	34	61	28	120	36	M5	5	F03
3/4"	15	82	41	65	33	120	36	M5	6	F03
1"	18	88	44	71	35.5	160	42	M5	7	F04
1-1/4"	25	115	57.5	80	45	160	42	M5	7	F04
1-1/2"	32	133	66.5	95	52	175	50	M6	9	F05
2"	38	143	71.5	100	57	175	50	M6	9	F05
